One-Stop Telecom PCB Assembly Service | Your Reliable China PCBA Partner

Are you searching for a stable, high quality, and compliant partner for telecom PCB assembly that supports both custom prototypes and large scale production while meeting strict industry standards?

Telecom equipment demands exceptional signal integrity, thermal management, mechanical stability, and long term reliability. These requirements make telecom PCB assembly one of the most challenging segments in electronic manufacturing.

This guide covers every critical aspect of telecom PCB assembly, including service scope, quality control, certifications, lead times, cost efficiency, problem solving, and quotation preparation. It helps engineering teams make informed decisions and reduce risks in project development.

Why Choose Us a Reliable China PCBA Partner for Your Telecom PCB Assembly Needs?

Telecom PCB assembly requires tight precision, stable processes, and certified quality systems. The right manufacturing partner directly improves product performance, on time delivery, and total cost of ownership. Our professional capabilities deliver consistent, reliable support for every telecom PCB assembly project.

• 19+ years of expertise in PCB manufacturing and assembly supports complex telecom PCB assembly requirements with mature processes and high yields.
• Full one stop service covers PCB fabrication, components sourcing, SMT, THT, BGA assembly, box assembly, and final testing.
• Certified quality management ensures all telecom PCB assembly batches meet global industry and regulatory standards.
• Stable component supply chain guarantees reliable delivery and competitive pricing for telecom devices.
• Flexible production capacity supports prototypes, low volume trials, and high volume mass production.
• Advanced manufacturing equipment handles ultra fine pitch components and specialty PCB materials for telecom.
• Fast response & short lead times meet tight deadlines for urgent telecom PCB assembly projects.

What Is Included in Our One-Stop Telecom PCB Assembly Service?

Our one stop telecom PCB assembly service integrates design support, production, assembly, testing, and logistics into a single streamlined workflow. This reduces management overhead and improves project stability for global customers.

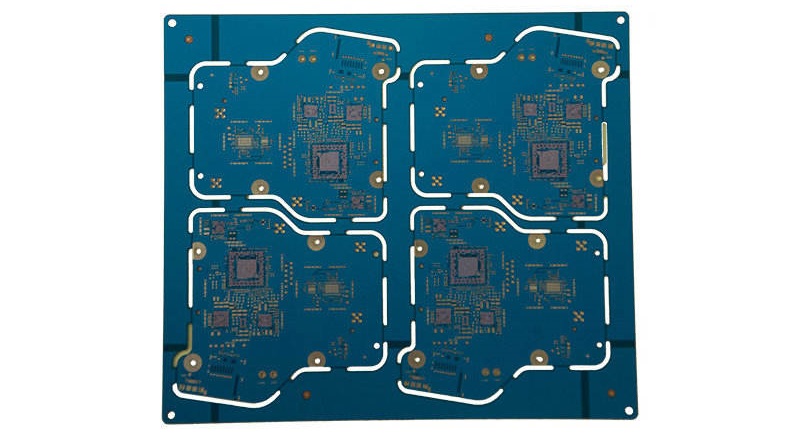

• Custom PCB Fabrication: FR4, multilayer, metal based, ceramic, flex, rigid flex, and high frequency PCB materials.
• Professional Components Sourcing: Full support for SMD, BGA, QFN, QFP, and through hole parts with a validated supply chain.

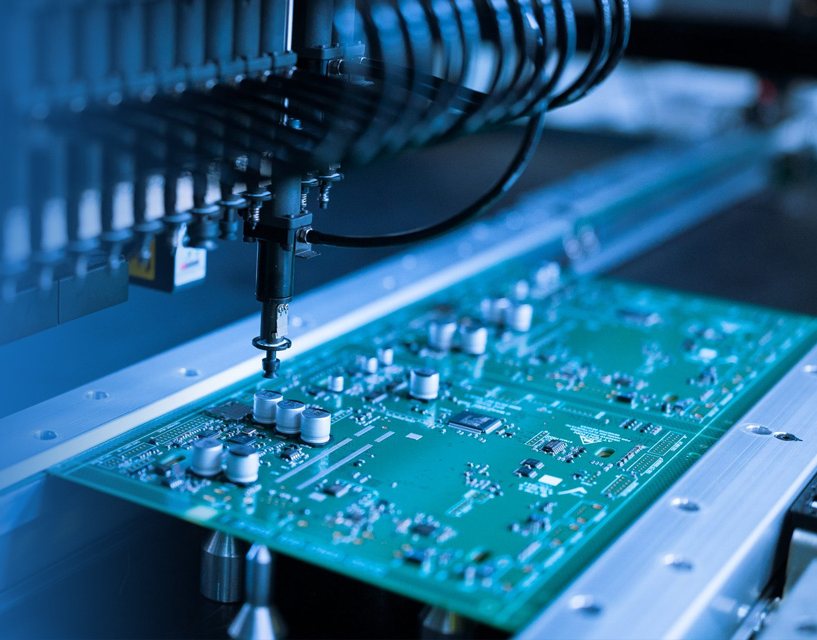

• High Precision Assembly: SMT, THT, BGA, flex PCB, ceramic PCB, and mixed technology assembly.
• Quick Turn & Prototype Support: Rapid prototyping and fast turnaround PCB assembly to speed up validation.
• Full Turnkey Solution: Complete material, production, inspection, and delivery management.
• Value Added Processes: Injection molding, CNC machining, sheet metal fabrication, and box assembly.
• Full Inspection & Functional Test: Ensures every telecom PCB assembly meets performance and reliability goals.

Can Our Telecom PCB Assembly Service Cover Both Custom and Mass Production?

Yes, our telecom PCB assembly service fully supports custom prototype development and large scale mass production under one unified, controlled process system.

Custom projects including prototype PCB assembly, small batch trials, and special material verification use our quick turn lines, flexible order quantities, and engineering support. These services validate design feasibility, optimize layout, test material performance, and confirm assembly processes before full scale launch.

For mass production, our stable monthly capacity, automated placement lines, standardized work instructions, and consistent inspection procedures ensure high uniformity and low defect rates across long running batches. We keep consistent process parameters between prototype and mass production to avoid failures during ramp up. This seamless transition reduces rework, shortens time to market, and lowers overall product cost for telecom equipment manufacturers.

How Do We Ensure High Quality in Every Telecom PCB Assembly Project?

Quality is non negotiable in telecom PCB assembly, because signal stability, durability, and long term performance directly affect network operation and user experience. We use a full lifecycle quality control framework to minimize risks and ensure compliance.

• Incoming Material Inspection: Verifies PCB substrates, components, and auxiliary materials before production.
• High Precision Process Control: Supports 01005 chips and 0.25 mm BGA pitch with automated placement.
• Full Process Monitoring: Tracks temperature profiles, placement accuracy, solder paste printing, and reflow conditions in real time.
• 100% Full Inspection Before Delivery: Eliminates visual, structural, and electrical defects before shipment.
• Reliability Testing Compatibility: Supports thermal cycling, vibration, and signal integrity testing.
• Continuous Process Improvement: Uses data to optimize yields, reduce defects, and stabilize long term production.

What Certifications Do We Have for Telecom PCB Assembly Services?

Telecom PCB assembly requires strict compliance with international quality, safety, and environmental standards to enable global market access and reliable operation. Our industry leading certifications provide strong assurance for telecom applications.

• IATF 16949: High reliability process control for high performance telecom infrastructure hardware.
• ISO 9001:2015: Standardized quality management across all PCB fabrication and assembly.
• ISO 13485:2016: High consistency and traceability for critical electronics manufacturing.
• AS9100D: Aerospace grade process discipline and risk mitigation.
• RoHS & REACH: Environmental compliance for global market access.
• UL Recognition: Safety and performance validation for finished PCB assemblies.

How Long Does It Take Us to Complete a Telecom PCB Assembly Order?

Lead times for telecom PCB assembly orders depend on volume, material availability, complexity, and urgency. Our streamlined workflows support both standard and expedited requests.

• Standard prototype & small batch: 3–5 business days with ready materials.
• Expedited urgent orders: 24 hours when components are available.
• Medium & high volume mass production: Scheduled lead times based on procurement and capacity.
• Full turnkey telecom PCB assembly: Clear milestones for material confirmation, production start, and shipment.

What Makes Our Telecom PCB Assembly Service Cost-Effective for Global Clients?

Cost efficiency in telecom PCB assembly comes from optimized processes, centralized supply chain, and scalable operations – not low quality compromises. Our structure delivers sustainable savings while maintaining performance.

• Mature processes reduce rework, scrap, and failure related costs.
• Bulk component purchasing lowers material costs for global customers.
• Integrated one stop service eliminates multi supplier management and extra logistics fees.
• Highly automated lines improve efficiency, consistency, and throughput.
• Flexible production modes prevent overinvestment and support smooth scaling.
• Global logistics optimization reduces total landed cost for international clients.

How Can We Solve Common Problems in Telecom PCB Assembly Projects?

Telecom PCB assembly often faces challenges including solder defects, thermal issues, signal interference, BGA voids, component shortages, and miniaturization limits. We provide proven solutions built on 19 years of field experience.

1. BGA voids & misalignment: Optimized reflow profiles, high precision placement, and 100% X ray inspection.
2. Signal integrity degradation: Strict impedance control, proper grounding, and stable assembly processes.
3. Thermal management challenges: Support for metal core and ceramic PCBs with specialized assembly.
4. Component shortages & lead times: Global supply chain, alternative components, and inventory planning.
5. Miniaturization assembly: Advanced equipment capable of 01005 components and ultra fine pitch packages.
6. Batch to batch inconsistency: Standardized parameters, full traceability, and real time monitoring.

What Do I Need to Prepare to Get a Quotation for Our Telecom PCB Assembly?

To receive an accurate, fast quotation for telecom PCB assembly, provide complete technical and commercial information to avoid delays and repeated clarification.

1. PCB fabrication data: Gerber files, layer stack, material type, thickness, surface finish, and dimensions.
2. Bill of Materials (BOM): Excel format with full descriptions, manufacturers, part numbers, and preferred sources.
3. Assembly drawing: Component locations, polarity, special processes, and test points.
4. Order quantity: Prototype, trial, and expected mass production volumes.
5. Special requirements: Testing standards, inspection criteria, packaging, labeling, and delivery terms.
6. Target lead time: For scheduling and expedite evaluation.

FAQs About Telecoms PCB Assembly and Test

Q1: What is the minimum component size supported in telecom PCB assembly?

A1: We support 01005 miniature components widely used in high density telecom designs.

Q2: What is the minimum BGA pitch available in your telecom PCB assembly?

A2: Our BGA assembly process supports a minimum pitch of 0.25 mm.

Q3: Do you provide testing services alongside telecom PCB assembly?

A3: Yes, we provide visual inspection, X ray inspection, electrical testing, and functional testing for telecom PCB assembly and test.

Q4: Can you handle flexible and rigid flex PCB in telecom PCB assembly?

A4: Yes, we support flex PCB assembly, rigid flex PCB assembly, and ceramic PCB assembly.

Q5: How do you ensure component authenticity in telecom PCB assembly?

A5: We source components from certified channels and perform strict incoming inspection.

Q6: Is quick turn service available for urgent telecom PCB assembly orders?

A6: Yes, we offer quick turn PCB assembly to support urgent development and production needs.

Q7: Can you manage box assembly and finished product integration for telecom devices?

A7: Yes, we provide box assembly, injection molding, CNC machining, and sheet metal services.

Get Your Free Custom Quote for Telecom PCB Assembly Today

If you are ready to start your telecom PCB assembly project, request a free, no obligation quote today and experience professional one stop service tailored to telecom industry demands.

We provide fast quotation responses, transparent pricing, customized process solutions, and dedicated technical support for every project. Whether you need prototype verification, small batch trials, or large scale mass production, we deliver stable quality, on time delivery, and cost effective results to support your product success.

Send your Gerber files, BOM, and assembly requirements to get an accurate quote within 24 hours and start your reliable telecom PCB assembly partnership.
