PCB Assembly Cost Reduction Tips | Transparent Pricing

2026-03-06 15:53 123 Views

Table of Contents

PCB assembly cost is a critical factor that directly impacts the overall budget and viability of any electronics project, from a simple prototype to mass production. This comprehensive guide will break down what goes into PCB assembly pricing and provide actionable strategies to reduce your manufacturing expenses without compromising quality.

Do you encounter these issues when estimating PCB assembly cost?

Common Cost Challenges	Our Solutions
Unclear PCB assembly cost breakdown	Transparent pricing with detailed cost structure
Slow response for PCB assembly cost estimates	Fast quotation supported by automated cost analysis
High PCB assembly cost caused by design issues	Free DFM feedback to optimize manufacturability
Expensive prototype PCB assembly runs	Efficient processes tailored for low-volume builds
Quality risks with low-cost overseas assembly	Reliable manufacturing and controlled global sourcing

At Best Technology, we are a professional PCB and assembly manufacturer committed to demystifying costs and delivering exceptional value. We operate our own advanced SMT factories in Vietnam and in China respectively, which allows us to control quality and costs directly. Our core advantage lies in providing truly transparent pricing and partnering with you through DFM analysis to achieve the most cost efficient pcb assembly possible. For a personalized PCB quote, pls feel free to contact our team at sales@bestpcb.vn.

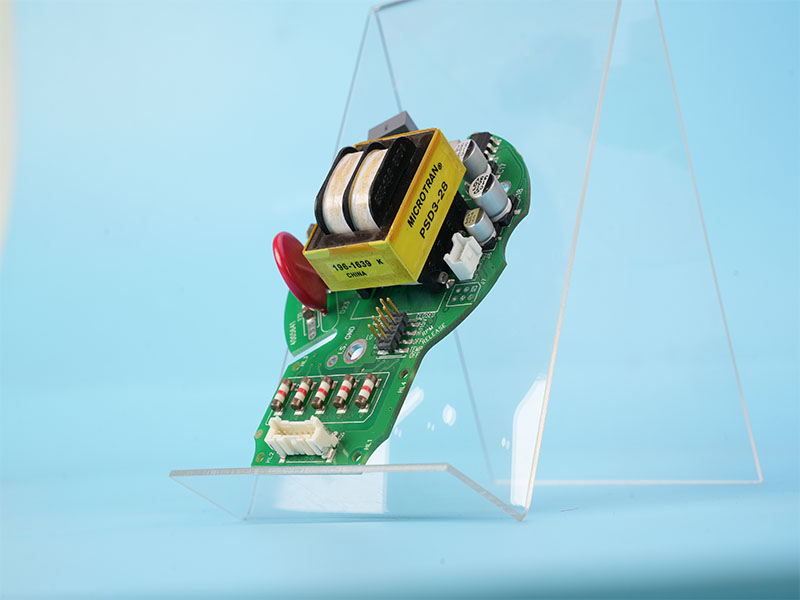

How Much Does PCB Assembly Cost?

There is no single flat rate for PCB assembly, as the final price is a composite of many variables. Understanding this range is the first step to budgeting effectively. For a standard, double-sided board with common components, you might see prices from 50 to300 per board for very small prototype quantities (1-5 pieces). For production runs in the thousands, the cost of pcb assembly can drop to a few dollars per board. The following table outlines the primary cost drivers that create this wide spectrum.

Cost Driver	Low-Cost Scenario	High-Cost Scenario	Impact on Final Price
Board Complexity	Simple, 2-layer FR-4 PCB	High-layer count, HDI, Rigid-Flex PCB	Very High
Component Types	Basic resistors/capacitors (SMT)	Fine-pitch BGAs, QFNs, exotic parts	High
Assembly Volume	Mass production (10,000+ units)	Prototype PCB assembly (1-10 units)	Extreme
Testing Requirements	Visual Inspection Only	Full In-Circuit Test (ICT) & Functional Test	Medium-High

In summary, the typical PCB assembly cost is a flexible figure. A simple printed circuit board prototype in low volume will have a high per-unit cost driven by setup, while a complex design in high volume shifts the cost burden to materials and precision labor.

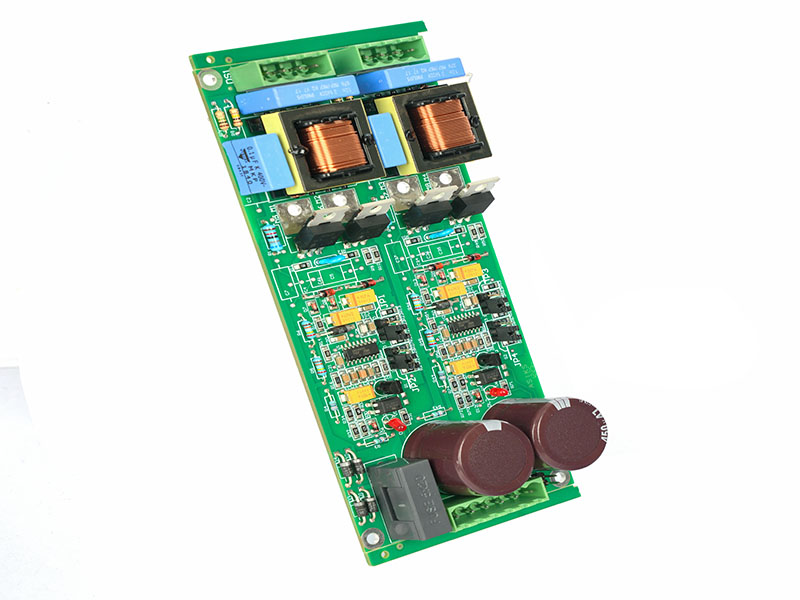

PCB Assembly Cost Breakdown: Where Does the Money Go?

To effectively manage and reduce expenses, you must first understand the PCB assembly cost breakdown. A transparent quote will itemize these core elements, showing you exactly what you are paying for.

Printed Circuit Board (PCB) Fabrication: This is the cost of the bare board itself. It is influenced by size, layer count, material (standard FR-4 vs. ceramic or Rogers), and special requirements like impedance control or gold plating.

Electronic Components: This is often the largest variable cost. Prices fluctuate based on market availability, component grade (commercial vs. industrial), and package type. The bill of materials (BOM) is the primary PCB assembly cost driver here.

Setup and Tooling (NRE – Non-Recurring Engineering): These are one-time fees for programming the assembly machines, creating the solder stencil, and preparing the production line. This cost is amortized over the entire production run, making it a significant portion of prototype PCB assembly cost.

Labor and Machine Time (Recurring Cost): This covers the time for SMT placement, through-hole insertion, soldering, and manual assembly steps. Higher complexity and mix of technologies (SMT + THT) increase labor time.

Testing and Quality Assurance: Costs for Automated Optical Inspection (AOI), X-ray inspection for BGAs, and functional testing. More rigorous testing increases cost but reduces the risk of field failures.

Additional Services: This includes conformal coating, potting, programming, and final packaging. These add-ons are optional but essential for many applications.

Therefore, your total PCB assembly order cost is the sum of the bare board, all components, one-time NRE fees, and per-unit costs for labor, testing, and extra services. A clear breakdown empowers you to see which areas offer the greatest potential for savings.

What Are the Main PCB Assembly Cost Drivers?

While the breakdown shows where money is spent, the cost drivers explain why the price is what it is. Focusing on these levers gives you the most control over your budget.

Design Complexity: This is the foremost driver. Every added layer, every finer trace width, and every switch to a Rigid-Flex design adds cost. For example, a rigid-flex pcb assembly cost per board is significantly higher than a standard rigid board due to complex materials and specialized assembly processes.
Component Selection and Sourcing: Choosing exotic, obsolete, or ultra-miniature components increases part costs and may require expensive, specialized assembly equipment. A simple PCB assembly cost per component comparison between a 0402 resistor and a 01005 can show a marked difference in placement time and accuracy requirements.
Order Volume and Scaling: Economies of scale dramatically reduce the per-unit cost. The high fixed NRE costs of prototype PCB assembly are spread over very few units. In mass production, these NRE costs become negligible per board, and bulk purchasing of components kicks in.
Quality and Testing Standards: A commercial toy has vastly different testing needs than a medical device. Implementing full ICT, burn-in testing, or compliance testing for aerospace adds significant cost but is non-negotiable for functional safety and reliability.
Turnaround Time: Standard lead times are the most cost-effective. Requesting expedited fabrication or “rush” assembly incurs premium charges, as it requires disrupting scheduled production workflows.

In summary, design complexity, component selection, order volume, testing requirements, and turnaround time are the key factors that ultimately determine the final PCB assembly cost.

How to Calculate PCB Assembly Cost

You can develop a rough PCB assembly cost estimate yourself by understanding the contributing factors. While a manufacturer’s official quote is essential, a preliminary calculation helps set realistic expectations.

Start with the Bare PCB: Use online PCB cost calculator tools from fabricators to estimate your board based on size, layers, and quantity.

Sum Your BOM Cost: Create a detailed Bill of Materials and get quotes for components from distributors like Digi-Key or Mouser for your target volume. This is your core material cost.

Factor in Assembly NRE: Estimate 150−500 for setup, stencil, and programming. This is a fixed cost regardless of quantity.

Estimate Recurring Assembly Labor: A simplified model is: (Board Complexity Factor) x (Number of Components) x (Labor Rate). A simple board might have a factor of $0.01 per SMT component, while a complex one with mixed tech could be $0.05 or more.

Add Testing Costs: Budget 5-15% of the assembly labor cost for basic AOI. For advanced testing, request a specific quote.

Total Cost Formula (Simplified): (Bare PCB Cost + BOM Cost + NRE) / Quantity + (Labor Cost per Board + Testing Cost per Board) = Estimated Cost per Board.

For an accurate pcb assembly costing, the best practice is to submit your complete Gerber files, BOM, and assembly drawing to a manufacturer for a formal quote. This accounts for all nuances a manual estimate might miss.

PCB Assembly Cost Per Component

The PCB assembly cost per component is a useful metric for understanding efficiency, though it is rarely charged as a literal per-component fee. It represents the average cost attributed to placing and soldering each individual part on the board. This cost is influenced by:

Component Package Size: Placing a 0201 capacitor is faster and cheaper for a machine than manually placing a large through-hole connector.
Placement Technology: High-speed chip shooters place simple resistors/capacitors at extremely low cost per part. Dedicated fine-pitch machines for BGAs are slower and more expensive to operate.
Number of Unique Parts: A board with 1000 placements of 5 different part numbers is cheaper to assemble than a board with 200 placements of 100 different parts. More unique parts mean more feeder slots on the machine, more setup time, and higher chances of mis-loads.

Key Insight: To reduce the effective cost per component, minimize the number of unique part references and avoid unnecessarily small package sizes that don’t provide a functional benefit. Standardizing components across multiple projects can also yield significant manufacturing cost estimation for PCB assembly savings at scale.

Prototype PCB Assembly Cost vs Mass Production Cost

Understanding the cost structure difference between prototyping and production is vital for financial planning. They are fundamentally different business models.

Prototype PCB Assembly Cost Characteristics:

High NRE Dominance: Setup costs (stencil, programming) are a large percentage of the total invoice.
Low Component Leverage: Parts are bought in small, expensive reels or even cut tape.
Premium Labor: Requires more flexible, manual setup and oversight. Engineers may be directly involved.
Primary Goal: Verify design functionality and performance quickly. Cost-per-board is secondary to speed and flexibility.

Mass Production Cost Characteristics:

Low NRE Impact: One-time setup costs are amortized over thousands of units, becoming negligible per board.
High Component Leverage: Components are purchased in bulk at much lower prices.
Optimized, Automated Labor: Assembly lines are fine-tuned for a single board, maximizing machine speed and efficiency.
Primary Goal: Achieve the lowest possible, consistent cost per unit with high reliability and yield.

Comparison: A low cost prototype pcb assembly service focuses on minimizing NRE and offering flexible options. For mass production, the quest shifts to finding a low cost pcb assembly manufacturer that can deliver scale, supply chain management, and automated efficiency. The rigid-flex pcb assembly cost per board comparison between prototype and production will show the most dramatic reduction due to the high initial setup complexity.

How Engineers Can Reduce PCB Assembly Cost？

Cost reduction starts on the design engineer’s screen. By designing with manufacturing in mind (DFM), you can avoid hidden expenses. Here are key strategies for cost efficient pcb assembly:

Design for Standardization: Use common, readily available components. Avoid “not recommended for new designs” (NRND) or obsolete parts. Standardize parts across different projects within your company to increase buying power.

Optimize Board Size and Panelization: Design your board to fit efficiently into standard panel sizes offered by fabricators (e.g., 18″x24″). A slightly smaller board or one that panels with no waste can reduce fabrication costs significantly.

Simplify the Design: Every additional PCB layer adds cost. Challenge the need for that extra signal layer. Minimize the number of different component packages and values to reduce setup time and placement complexity.

Choose Components Wisely: Select slightly larger package sizes (e.g., 0402 over 0201) if electrical performance allows, as they are easier and cheaper to place and inspect. Consider the total landed cost of a component, not just its unit price.

Collaborate Early with Your Assembler: Engage with your assembly partner during the design phase. Their PCB assembly cost drivers expertise can provide invaluable DFM feedback, catching issues that would require costly board spins or complex assembly procedures.

In summary, applying DFM principles and making thoughtful design decisions early can greatly reduce PCB assembly cost and improve overall manufacturability.

How to Get an Accurate PCB Assembly Quote?

An accurate quote is the foundation of good project management. To get the best PCB assembly quote, you must provide complete and clear information. Here’s what a professional manufacturer needs:

Gerber Files: The complete set (RS-274X preferred) for each layer (copper, solder mask, silkscreen, paste, drill files).
Bill of Materials (BOM): A clean spreadsheet with Manufacturer Part Numbers (MPN), quantities, reference designators, and descriptions. Clarity here prevents sourcing errors.
Pick-and-Place File/Centroid File: This file provides the X, Y, rotation, and layer (top/bottom) for every component, essential for programming assembly machines.
Assembly Drawing: A PDF highlighting component orientation, polarity, and any special instructions for unusual parts.
Clear Specifications: State your desired quantity (prototype vs. production), target turnaround time, and any required testing (AOI, ICT, Functional).

Submitting a complete and error-free package is the most effective way to receive a fast, firm, and accurate quote, whether you’re looking for low cost PCB assembly services locally or abroad.

Why Many Companies Choose China for Low Cost PCB Assembly?

The decision to source China low cost PCB assembly is primarily driven by mature ecosystems and scale. China has developed the world’s most complete electronics supply chain over decades. This concentration of PCB fabricators, component suppliers, assemblers, and related industries creates unparalleled efficiency and cost competition. The primary advantages are:

Unmatched Economies of Scale: Factories are optimized for high-volume orders, driving per-unit costs down dramatically.
Integrated Supply Chain: Components and raw materials are often locally sourced, reducing logistics time and cost.
Advanced Manufacturing Infrastructure: Heavy investment in the latest SMT equipment and automation allows for high throughput and consistent quality on standard designs.

However, companies must also consider factors like longer logistics lead times, potential language/cultural barriers, intellectual property protection, and the rising cost of PCB assembly cost in India and Southeast Asia as alternative destinations. A balanced strategy, perhaps using a hybrid model with a partner like Best Technology that has China-based factories for cost and scale but offers project management from a regional hub like Vietnam, can mitigate these risks while preserving cost benefits.

In a nutshell, PCB assembly cost is a multifaceted calculation, determined by design choices, component selection, order volume, and geographic manufacturing strategy. By understanding the detailed breakdown and key drivers of this cost, engineers and procurement managers can make informed decisions to control their budget effectively.

Achieving transparent pricing and lower costs requires a two-pronged approach: intelligent design practices focused on manufacturability (DFM) and a collaborative partnership with an assembly provider that values clarity and efficiency. Proactive steps like component standardization, design simplification, and early engagement with your manufacturer are the most powerful PCB assembly cost reduction tips available.

Best Technology is positioned as your ideal partner in this effort. We combine the scale and cost advantages of our own Chinese manufacturing facilities with responsive, English-speaking engineering support to provide clear PCB assembly cost breakdowns and actionable DFM feedback. We are committed to helping you optimize your design for manufacture, turning cost challenges into competitive advantages. For a detailed, transparent quote on your next project, please contact us at sales@bestpcb.vn.

FAQs About PCB Assembly Cost

Why is prototype PCB assembly more expensive?

Prototyping is expensive on a per-unit basis because the fixed, one-time setup costs (NRE)—like stencil creation, machine programming, and line setup—are divided by a very small number of boards (often 1-10). There are also no economies of scale for components or optimized labor flow.

What affects PCB assembly pricing the most?

The three most significant factors are:
1) Order Volume (economies of scale),
2) Design/Board Complexity (layer count, technology like Rigid-Flex),
3) Component Selection (cost, availability, and package type).
For example, the rigid-flex pcb assembly cost per board 2025 is driven more by material and process complexity than volume.

Can PCB design reduce assembly cost?

Absolutely. This is the principle of Design for Manufacturability (DFM). A good design can reduce assembly cost by using standard components, minimizing unique part numbers, allowing for efficient panelization, and avoiding overly complex features that slow down production or require special processes. A DFM check from your assembler before finalizing design is a highly effective PCB assembly cost reduction tip.
